Ultrasonic Liquid Level Indicator
The Portalevel® Mini is a portable and battery powered, liquid level indicator designed to non-invasively, accurately, and reliably measure the level of fire suppression agent contained within a cylinder. The Portalevel® Mini is suitable for most standard size cylinders containing CO2, Liquified Clean Agents and Halons.
Get help buying? Chat now, email or call +44 207 629 8475
The Portalevel® Mini provides an ideal solution for testing typical fire suppression cylinders. It utilises our trusted 7th generation technology, providing a very versatile and reliable solution. Over the years it has undergone numerous upgrade programs and the most popular unit in the range for testing standard size fire suppression cylinders.
The Portalevel® Mini is particularly advantageous for fire servicing companies and asset owners managing their own fire suppression systems. This is because the Portalevel® Mini provides a very quick, safe and efficient method for testing fire cylinder contents. Traditionally, companies manually weigh cylinders in order to measure cylinder content, which is dangerous, time consuming and requires shutdown of the fire suppression system.
- User-friendly, versatile and accurate to ±1.5 mm.
- Calibration feature and additional power setting for increased gain.
- Low-cost model.
- Capable of testing a wide variety of fire suppression agents, such as; CO2, FM200™, NOVEC™ 1230, old Halon agents, FE-13™, FE-25™, NAF S III™ and most core Clean Agent systems.
The Portalevel® Mini is designed to be a portable way to non-invasively locate the liquid level inside most single skinned cylinder. Our technology is suitable for many applications, but it is most widely used as a replacement to both weighing fire suppression cylinders during installation and servicing, or replacement for the fitting of internal and invasive liquid level ‘float’ devices. Once the liquid level height inside a container has been located, the agent weight can be determined using the Portasteele® Calculator, which is designed to quickly convert liquid height to agent weight accounting for the cylinder size, agent type and temperature.
Converting Liquid Level to Weight: Monitoring the liquid level in fire cylinders is a vital aspect of any fire suppression system maintenance schedule, however, understanding how the liquid level relates to the fill weight of the cylinder is equally important. Coltraco Ultrasonics offer, in conjunction with the Portalevel® range, the world’s first liquid level to agent mass calculator.
The Portasteele® Calculator calculates the agent weight of a fire suppression cylinder. It does this by using the liquid level determined by our Portalevel® range or inversely, by using the required fill level for a certain weight of suppression agent. The Portasteele® Calculator is sold as a stand-alone unit on a 7’’ hand-held tablet to be used in conjunction with our Portalevel® range.
- An ultrasonic transducer, coated in ultrasound gel (or water) generates an ultrasonic pulse that is transmitted into the fire cylinder and is reflected back. The ultrasonic gel acts a couplant by removing any air gaps between the ultrasonic transmitter and the cylinder wall, thus allowing the transmission of ultrasound.
- As the wave travels throughout the cylinder, some of its energy is dissipated into the cylinder and its contents. This results in the signal returned to the transducer having decreased amplitude. Analysis of the returned signal can be used to determine if the transducer has been placed in the liquid or gas phase.
- The Portalevel® Mini’s display, using a numerical value indicates what phase the ultrasonic transducer is placed in.
- The device is calibrated by moving the transducer up and down the cylinder whilst reading the numerical value off the display and engaging the ‘CAL’ button when in the appropriate section.
What's in the box

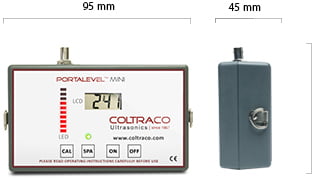

Portalevel® Mini Unit: main electronic unit fitted with harness points for handsfree operation.
Handheld Ultrasonic Sensor: fitted with magnetic head to ensure perfect positioning on the cylinder wall every time.
Ultrasonic Gel: ensures perfect connection between cylinder and sensor allowing the transfer of ultrasound into the inspection surface.
Carrying Case: robust protective case which is ideal for transportation, storage and protection in harsh environments.
Infrared Thermometer: used to measure cylinder surface temperature.
Calibration Certificate: providing traceability of accuracy and documenting unit setup.
Operating Instructions: manual provides setup instructions and step-by-step guide for usage. Technical support is available for the lifetime of the product.
- 200mm x 93mm x 45mm
+/- 1.5 mm / +/-1/16 inch
14mm diameter magnetically mounted sensor applicator with a 1 m BNC coaxial cable.
4 x AA 1.5V batteries
Approximately 10 hours battery life during normal operation
-10C to +70C
Humidity range of 5% to 95%
- Main unit – 3 Year Warranty
- Sensor – 1 Year Warranty
- Technical Support – Lifetime of the unit
