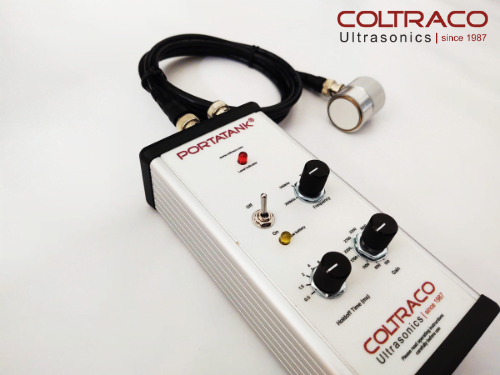

Portatank®

Identify liquid levels in large industrial containers/tanks/storage units using portable handheld ultrasonic liquid level indicator technology. The newest product launch from Coltraco Ultrasonics in 2020!

Portable Ultrasonic Liquid level Indicator for industrial tanks
P/N: 3141184-TANK
Leadtime: 6 weeks

Enquire Now

Identify liquid levels in large industrial containers/tanks/storage units using portable handheld ultrasonic liquid level indicator technology.

The Portatank® is a portable handheld device with a greater operating range up to tank diameter range 0.5-15 metres, of most common tank types such as steel, plastic, aluminium, etc. It is advanced, lightweight, accurate technology that is designed to improve safety by enabling the user to more easily and quickly identify the contents non-invasively. The portable, handheld device can be used for periodic checks of tanks.

  • For tanks that already have an in-built system, our portable non-invasive technology allows operators to verify liquid levels in tanks with existing in-built level indicators, as some of these can be from an old technology that can be inaccurate such as float level or sight-glass methods.
  • For tanks without any form of liquid level indication, the Portatank®  can detect the liquid levels non-invasively through the outer walls of the tank.
  • Portatank® requires no installation for either application

Typical Applications

  • Food and Drink Processing
  • Pharmaceuticals
  • Oil & Gas
  • Chemicals
  • Petrochemicals
  • Water Treatment Facilities
  • Fire Safety Engineering
  • Breweries
  • Process Industries
  • Transformers

Accurate

With clear LIQUID / NO LIQUID result (presence/absence), the Portatank® is accurate to +/- 10mm, providing a safe, quick and accurate method to monitor contents. This adaptable technology can work with liquid levels that fluctuate over time, as well as test a wide range of tanks and liquids. Coltraco’s equipment is designed to improve safety and best practice, ensuring the equipment used to inspect tanks is accurate and efficient.

Non-Invasive

Unlike traditional methods of testing, the Portatank® boasts its core capability of non-invasive testing. The Portatank® measures levels of fluids, particularly hazardous liquids where the tank cannot be opened for safety reasons and a float gauge cannot be installed. With the external, non-invasive, non-intrusive technology, the Portatank® is suitable for testing hazardous liquids without the risk of contaminating the liquid. As the liquid storage system is undisturbed during testing, with no removal of lids needed, the risk to the personnel conducting the test is minimised. The unit has a simple and straightforward testing process, requiring only the simple application of the sensor to the container wall.

advantages

Tank Diameters

  • Tank diameter: 0.5m – 15m
  • Wall thickness: 0.1mm – 20mm
  • Wall material: Steel (all types), Plastics, Glass

To receive pricing and further information simply fill out the below form

A member of the Coltraco Ultrasonics sales team will happily get back to you within 24 hours.

Coltraco

1 Main Unit

1 Sensor

1 Handheld Oscilloscope (+ BNC cable & Micro USB Cable)

1 Robust Carrying Case

1 Calibration Certificate

2 Operating Instructions

1 Ultrasound Gel

Dimensions

  • Height: 200 mm
  • Width: 100 mm
  • Depth: 700 mm
  • Weight: 750 grams (with batteries)

Accuracy

+/- 10mm

Verifiable Agents

Water and most clean liquids (get in touch for more details)

Sensor

200 kHz, 500 kHz, 1 MHz, 2 MHz (depending on application), connected by BNC connector

Power Supply

8 x 1.5 V AA batteries

Display

Liquid Level Detection: Visual LED indication

Operating Temperature

Ambient temperature range: -20°C to +70°C

Certificates

  • CE
  • ISO 9001 Registered
  • ISO 14001 Registered Company

Warranty

Main Unit: 3 Years Warranty Sensor: 1 Year Warranty Lifetime Customer Support

Package Contents

  • 1 Main Unit

  • 1 Sensor

  • 1 Robust Carrying Case

  • 1 Calibration Certificate

  • 1 Operating Instructions
