Portasonic® PRO

Name: Portasonic® PRO | Coltraco Ultrasonics
SKU: 2618949-PSOPRO

The Portasonic® PRO is a handheld tablet-based ultrasonic clamp-on flow meter with built-in pressure prediction software for calculating internal pipe pressure from measured flow rates. It combines the functionality of the non-invasive flow measurement of the Portasonic® with the pressure prediction capability of the Portasonic® CALCULATOR, to form the first instrument capable of predicting the internal pressure within pipes, using non-invasive, externally measured flow sensors.

P/N: 2618949-PSOPRO

CAGE Code: KD983 – COLTRACO LIMITED

Not quite what you’re looking for?

Speak to our design team.

Request a Quote

Overview

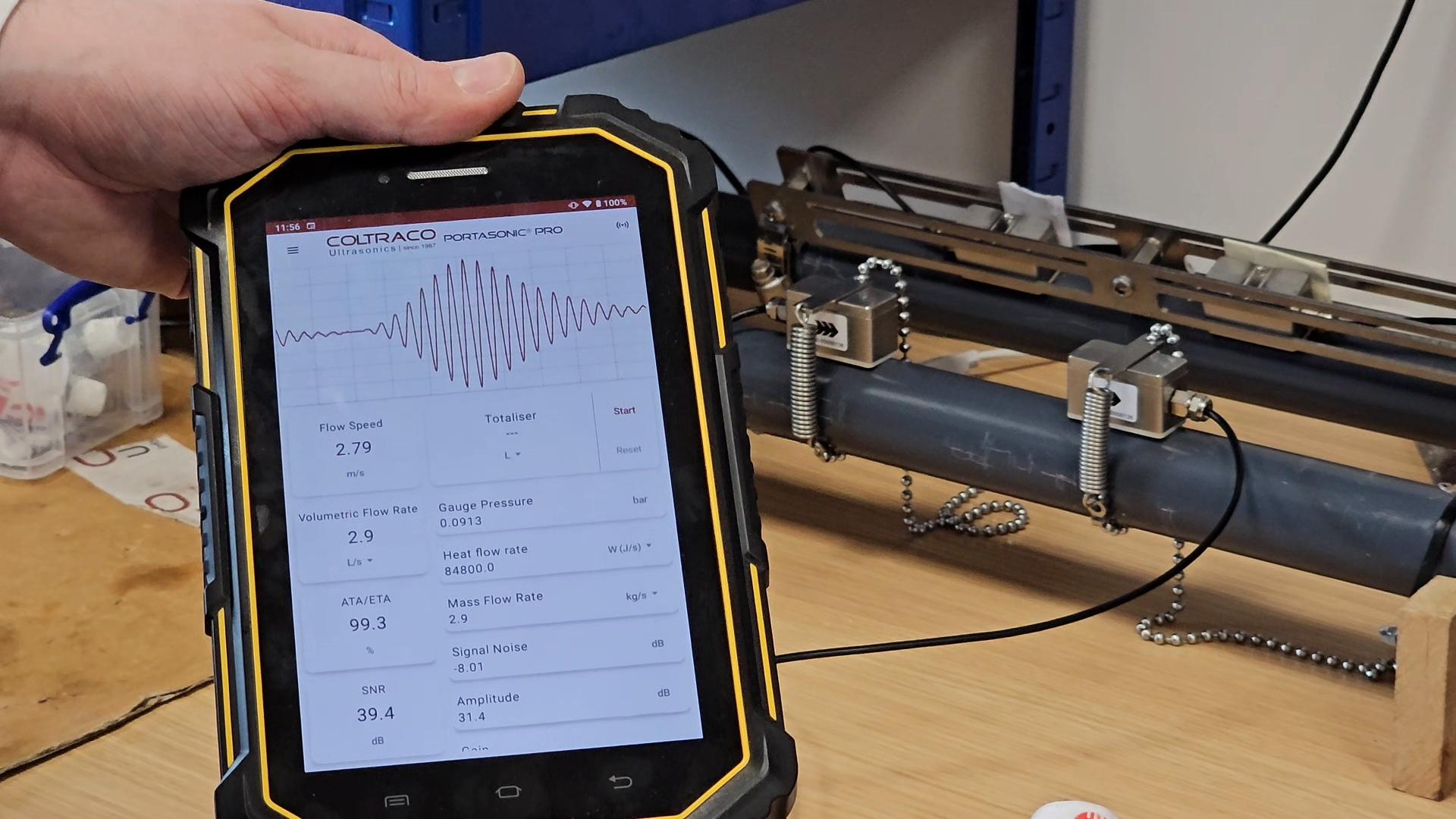

Combined ultrasonic clamp-on flow meter with internal pressure calculator

The Portasonic® PRO integrates the Portasonic® flow rate measurement with the Portasonic® CALCULATOR, a groundbreaking tool for determining internal pipe pressure using external flow technology.

Accurate Flow Measurement: Users can measure liquid flow rates non-invasively with industry-leading precision of 0.5%.
ISO 17025 Verified: Flow measurement accuracies are independently verified at an ISO 17025 laboratory, ensuring reliability and trustworthiness.

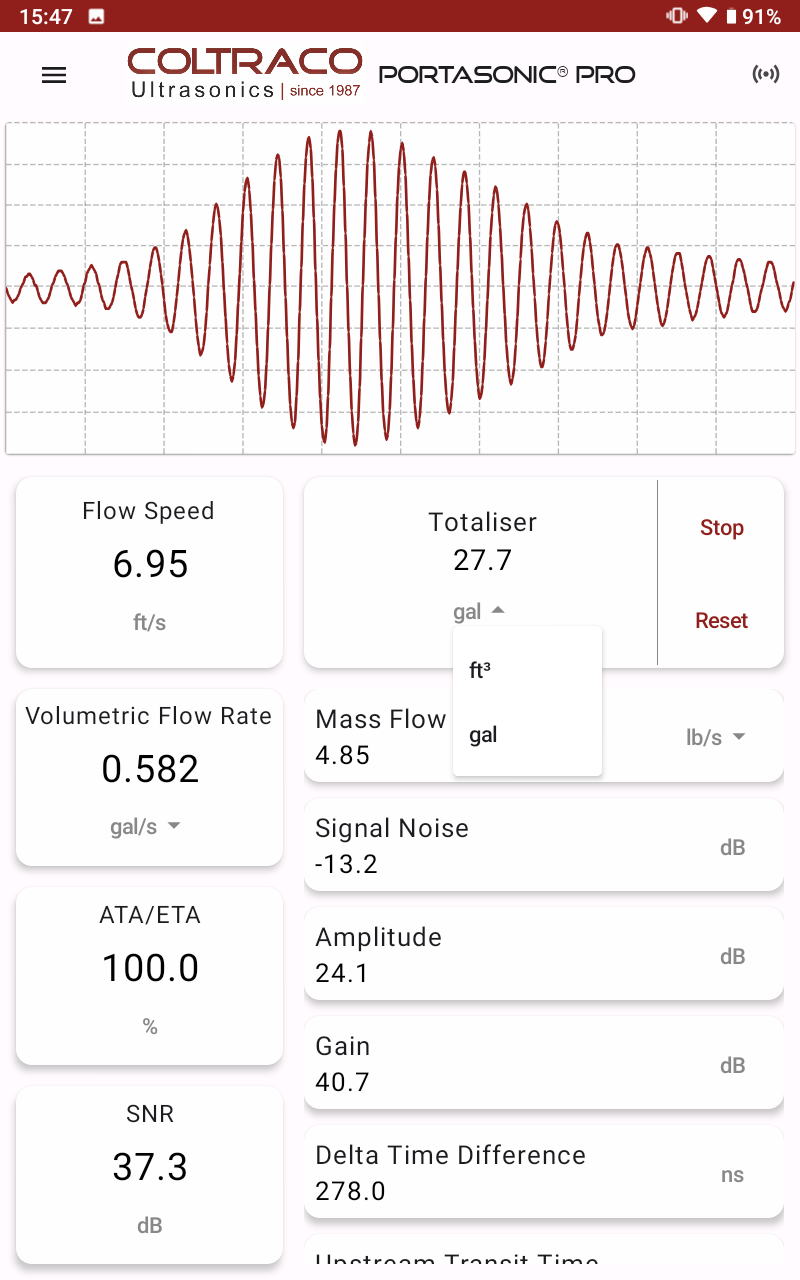

Pressure Calculation: Activating pressure calculation displays both flow rate and calculated internal pipe pressures.
Advanced Algorithms: The device utilizes empirical equations derived from fluid dynamics laws to calculate pressure with 5% accuracy.
Fluid and Material Knowledge: Extensive knowledge of 19+ different fluids and 23 common pipe materials ensures accurate pressure calculations across various scenarios.

Advantages of Non-Invasive Ultrasonic Flow Measurement and Pressure Monitoring

The clamp-on, portable nature eliminates installation costs and downtime, as it doesn’t require drilling into pipes.
With no contact with the fluid, there’s no risk of pressure loss or damage to the flowmeter, ensuring a longer lifespan and lower maintenance costs compared to inline meters.
Monitoring internal pipe gauge pressure is crucial to prevent pipe failure, property damage, and risks to personnel.

Main Features of the Portasonic® PRO

Full Portasonic® CALCULATOR integration: Streamlined workflow with real-time pressure calculations without the need for additional applications.
Datalogging capabilities: Capture and store millions of flow and pressure data points.
Heat Flow Rate Calculation: Achieved through user-inputted inlet/outlet temperatures.
Totaliser Capability: Tracks cumulative flow measurements effortlessly.
Extensive Database: Contains 15+ pipe materials and fluid types.
Wide range of pipe diameter: Supports pipes up to 750mm diameter.
Improved, fully customised user interface and experience layers.

What's in the box

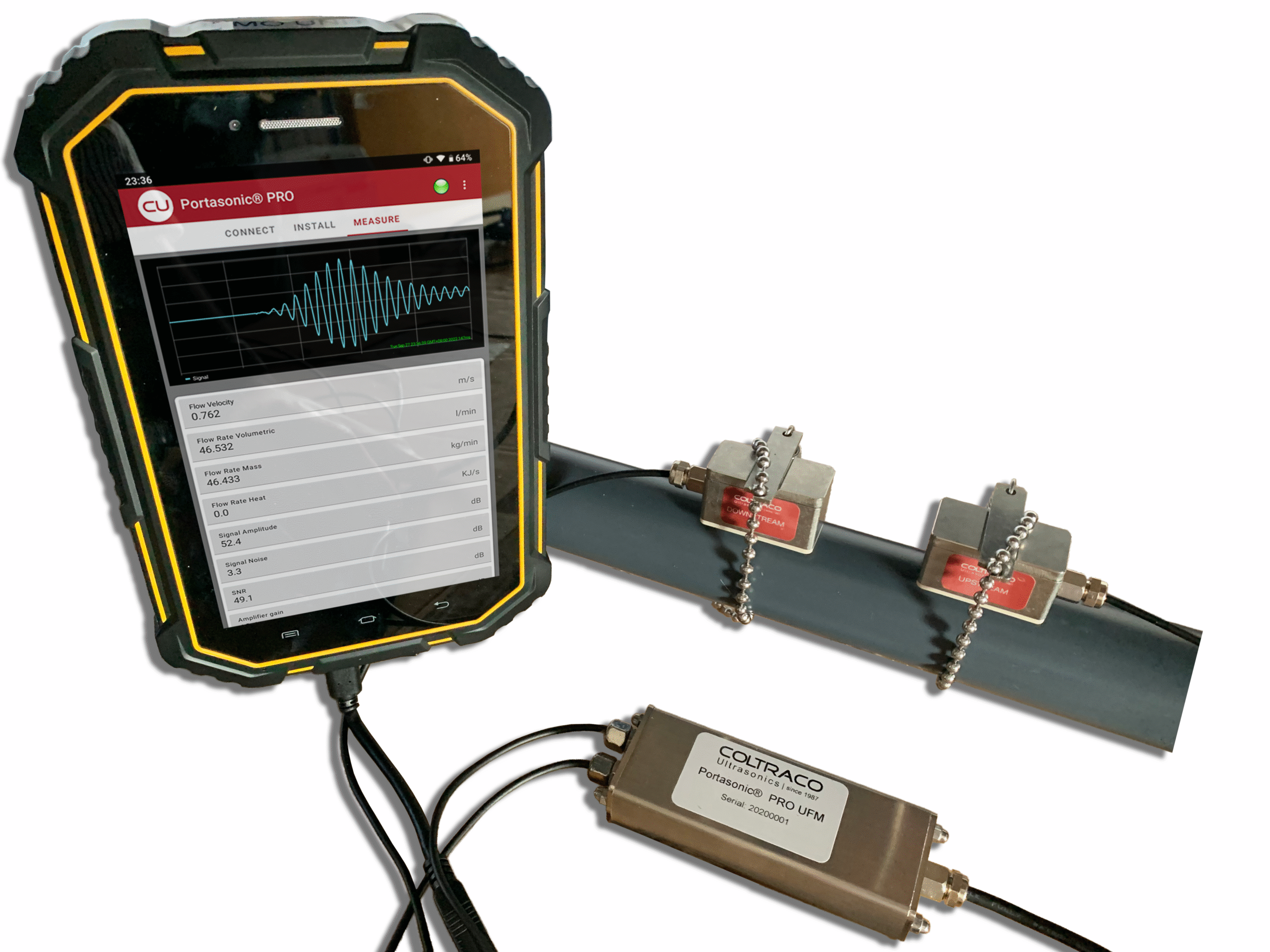

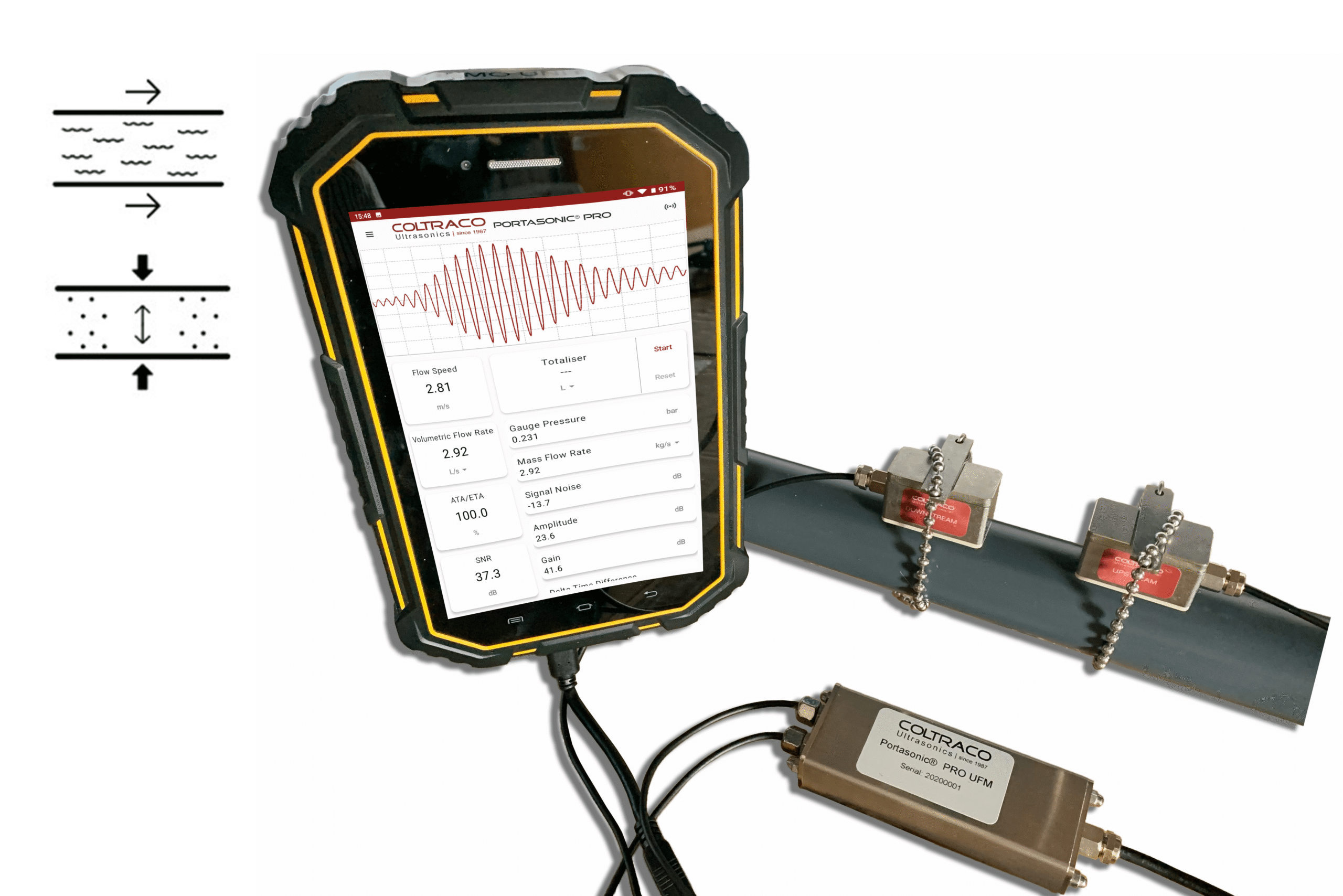

Portasonic PRO 7” tablet:: Handheld, ruggedised, rechargeable 7-inch touchscreen tablet
Processing Unit with Pair of DM10 Standard Sensors for pipes DN15 – DN700:: Compact, ultrasonic flow measurement sensors combined with processing unit
Pair of Beaded Chain Clamps (set of 2) :: Metallic chain clamps for mounting flow measurement sensors with ease
Measuring Tape :: For measuring the distance between flow measurement sensors during set-up process
Ultrasonic Couplant:: For ensuring good contact between sensors and pipe wall
USB Type-C to USB Type-A adaptor:: To allow direct connection between the flow sensors to table and to allow direct plug-in of a USB stick for exporting data
USB Type-C Cable:: For charging and data transfer
Power adaptor:: For charging the tablet
USB Stick:: To save your data on
User Manual:: Contains further information regarding functionality of the instrument and how-to-use
Installation Manual :: Contains further guidance on how to install the flow measurement sensors on the pipe
Calibration Certificate:: As evidence that the unit has been tested and shown to be working before dispatch

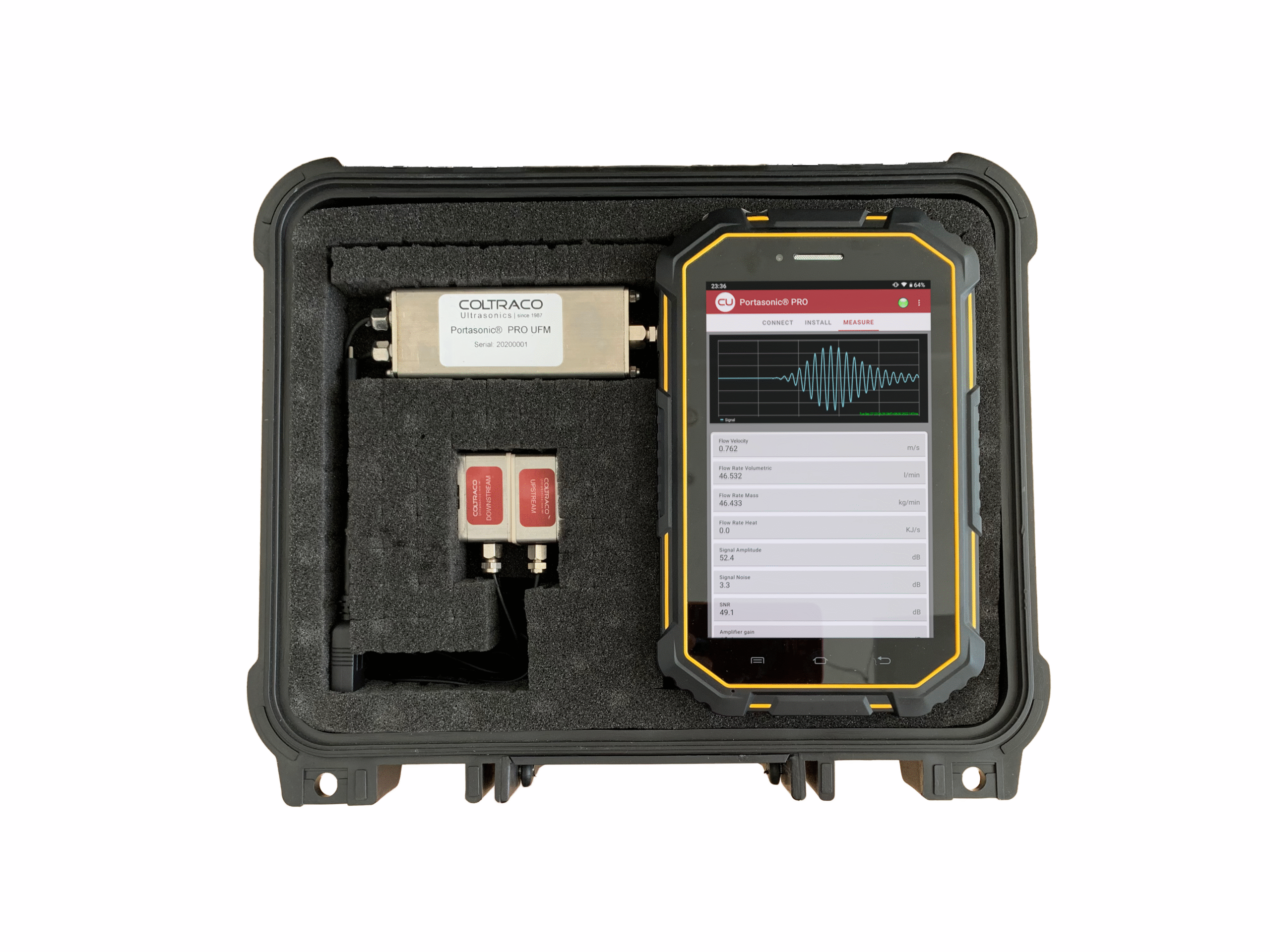

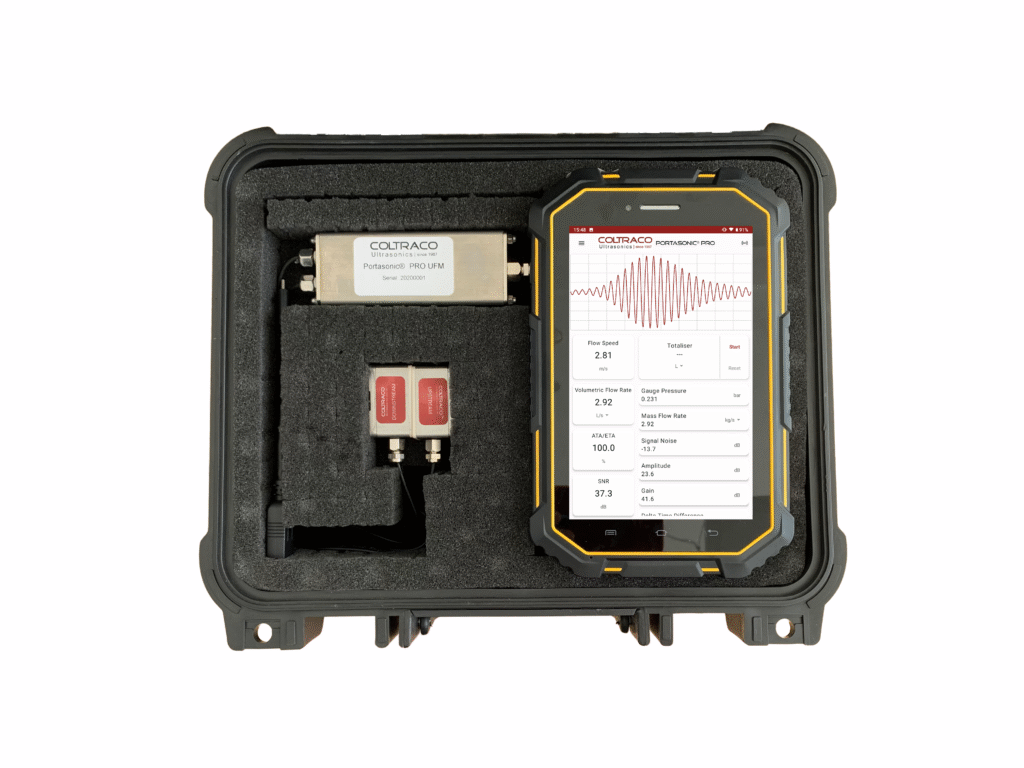

Robust Carrying Case:: For portability and ease of carrying the equipment

Technical Specifications

Dimensions	Tablet – 216mm (L) x 136mm (W) x 19mm (D) Processing Unit – 105mm (L) x 40mm (W) x 21mm (D) Sensors – Standard Model DM10: 40mm (L) x 20mm (W) x 25mm (D)
Weight	Tablet – 558g Processing Unit & Sensors – 400g
Pipe Diameter Range	Standard Sensor (Model No. DM10): DN15 – DN750 (1/2” – 30”) for 12+ pipe materials, including carbon steel, stainless steel, copper, PVC, or “other” for materials not in our database.
Liquid Types	Preloaded database with 14+ fluid options, including water, petrol, fuel oil, and “other” for fluids not in our database.
Accuracy	Flow Rate: +/- 0.5% of measured value under ideal conditions Pressure Calculation: +/- 5% of the internal pipe pressure
Flow Velocity	0.01m/s - 25m/s
Resolution	0.25 mm/s
Repeatability	0.15% of measured value
Turn down ratio	1/100
Measurement Rate	1 Hz as standard
Measurement Unit	Flow Velocity, Volumetric Flow Rate, Mass Flow Rate, Energy Flow Rate (Heat Quantity), Volume, Pressure
Sensor Material	Housing: Stainless Steel Front Face: PEEK (Polyetheretherketone)
Cable Length	1.5m as standard (additional lengths available upon request)
IP Rating	Tablet - IP67 Sensors - IP66
CPU	MT6762 Cortex A53 octa core, 2.0GHz; GPU: PowerVR GE8320, 650MHz
OS	Android 9.0
Battery	Built-in 8000mAh rechargeable Li-ion battery Continuous operation minimum of 10 hours
Standby time	Up to 200 hours
Data Transfer	USB Type-C
Speaker	φ23 loudspeaker, 1 watt
Display	7.0 inch HD IPS capacitive touch screen, 1280*800px
RAM	4 GB
ROM (Storage)	64GB, capable of saving millions of flow and pressure records
Camera	Double cameras, front 2.0MP camera, 13.0MP back camera with flashlight
Sensor	Geomagnetic sensor, light sensor, proximity sensor, gravity sensor, gyro sensor
I/O Ports	1 x USB-C port 1 x 3.5mm earphone jack
Certifications	CE, Coltraco is ISO 9001:2015 and ISO 14001 approved
Warranty	Main Unit: 3 years Sensor: 1 year Lifetime customer support
