Portalevel® MAX

The fastest, most powerful and easiest to use ultrasonic liquid level indicator ever produced by Coltraco Ultrasonics. With UL Listing and Full ABS Type Approval, it is ideal for testing large cylinders requiring more power output.

8th Generation Portable Ultrasonic Liquid Level Indicator
P/N: 2290334-COMX
NSN: 6680-99-275-5292
Ex-stock | Same-Day Dispatch*

Enquire Now

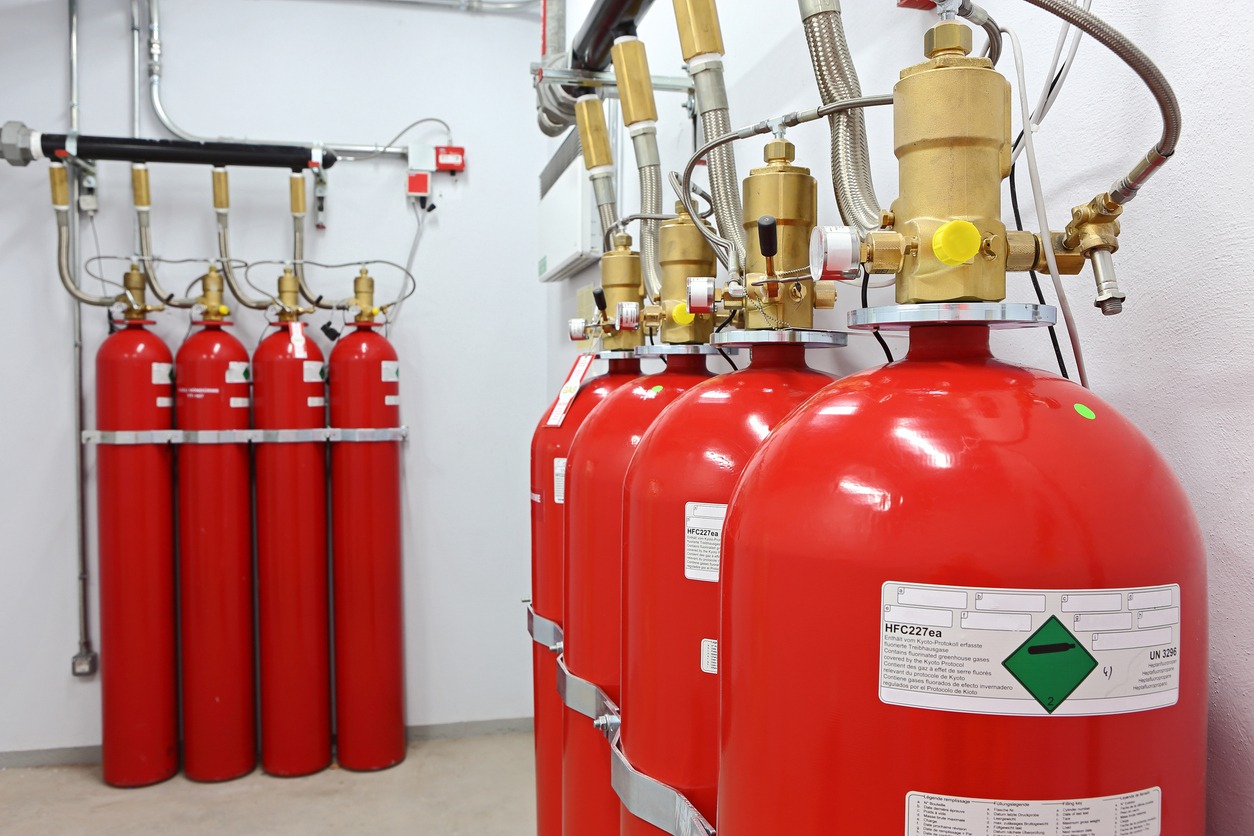

The Portalevel® MAX equipment is specially designed for users looking to identify the liquid level in large numbers of cylinders, containers with particularly large agent mass and those requiring UL Approval.

The 8th Generation technology testing procedure is short and simple, making the process of inspecting cylinder content incredibly fast. Every cylinder can be inspected in under 30 seconds, with the ‘cal’ feature automatically setting up the unit for each cylinder at the touch of a button. This significantly reduces user error, makes the testing process very simple and requires minimal user training.

The Portalevel® MAX also has 4 different power modes (SPA). The SPA feature increases the sensitivity of the device and increases the strength of the output signal. This enables the unit to continue working on very large tanks up to around 800KG of agent or containers experiencing high levels of corrosion and pitting.

The equipment can detect a wide variety of liquids including CO2, FM200®, NOVEC™ 1230, Halon and all other liquid agents. Accurate to +/-1.5mm the Portalevel® MAX also has a variety of approvals including UL Listing and ABS Approval and is accepted by RINA. It also fully complies with NFPA standards for use. In a hard aluminium case, it is designed to sustain rough handling and high intensity usage to provide users with a long-term investment. The unit has an expected lifespan of 10 years with minimal consumables required and with the Coltraco Customer Guarantee, we always promise to buy back the unit for upgrade to newer models at any time customer requirements change.

1. Dry Sensor A standard sensor for all land based Portalevel® units. The metal applicator is connected to the unit via 1 meter cable and a BNC connector.

2. Portatherm An infrared thermometer comes as standard. Designed with portability in mind, this device is intended to measure cylinder temperatures.

3. Main Unit The main unit is protected in an IP65 enclosure and weighs 500 grams. It has an LCD digital display with a bar graph and 4 button controls.

4. Ultrasound Gel Ultrasound gel is useful for increasing the surface contact of the sensor. The Portalevel® MAX sensors have also been designed to work with water.

5. Extension Rod (Optional) The extension rod is optional and is  designed for testing banked CO2 cylinders 3-4 rows deep.

Dimensions

  • Height: 160 mm (6.29 inches)
  • Width: 82 mm (3.22 inches)
  • Depth: 30 mm (1.18 inches)
  • Weight: 300 grams (10.58 ounces)

Accuracy

+/-1.5mm (1/8 inch)

Verifiable Agents

CO2, FM-200®, NOVEC™ 1230, old Halons such as 1301 and 1211, FE-13™, FE-25™, FE-36™, HFC-225 & 227ea, NAF S 125. Please speak to our Sales team for the full range.

Sensor

TX/RX Dry Sensor
  • 14 mm diameter head
  • Contained within a magnetized sensor applicator;
  • Connected to 1 m length cable with BNC connectors.

Power Supply

1 x PP3 9V battery (battery life 10 hours)

Display

Membrane control operated, LCD back-lit Display measuring 55 x 28 mm

Operating Temperature

-20°C to +70°C (68°F to 158°F)

Certificates

 PLMAX logo
  • UL Listed
  • ABS Type Approved
  • Classification Society Accepted - RINA
  • CE
  • ISO 9001 & ISO 14001 Registered Company

Classifications

  • Enclosure IP Rating 65
  • NATO Stock Number: 6680-99-275-5292

Warranty

  • Main Unit: 3 Years Warranty
  • Sensor: 1 Year Warranty
  • Lifetime Customer Support

Package Contents

  • 1 Portalevel® MAX unit
  • 1 Dry Sensor
  • 1 Portatherm
  • Ultrasonic Gel
  • 1 Hard Wearing Carrying Case
  • Calibration Certificate
