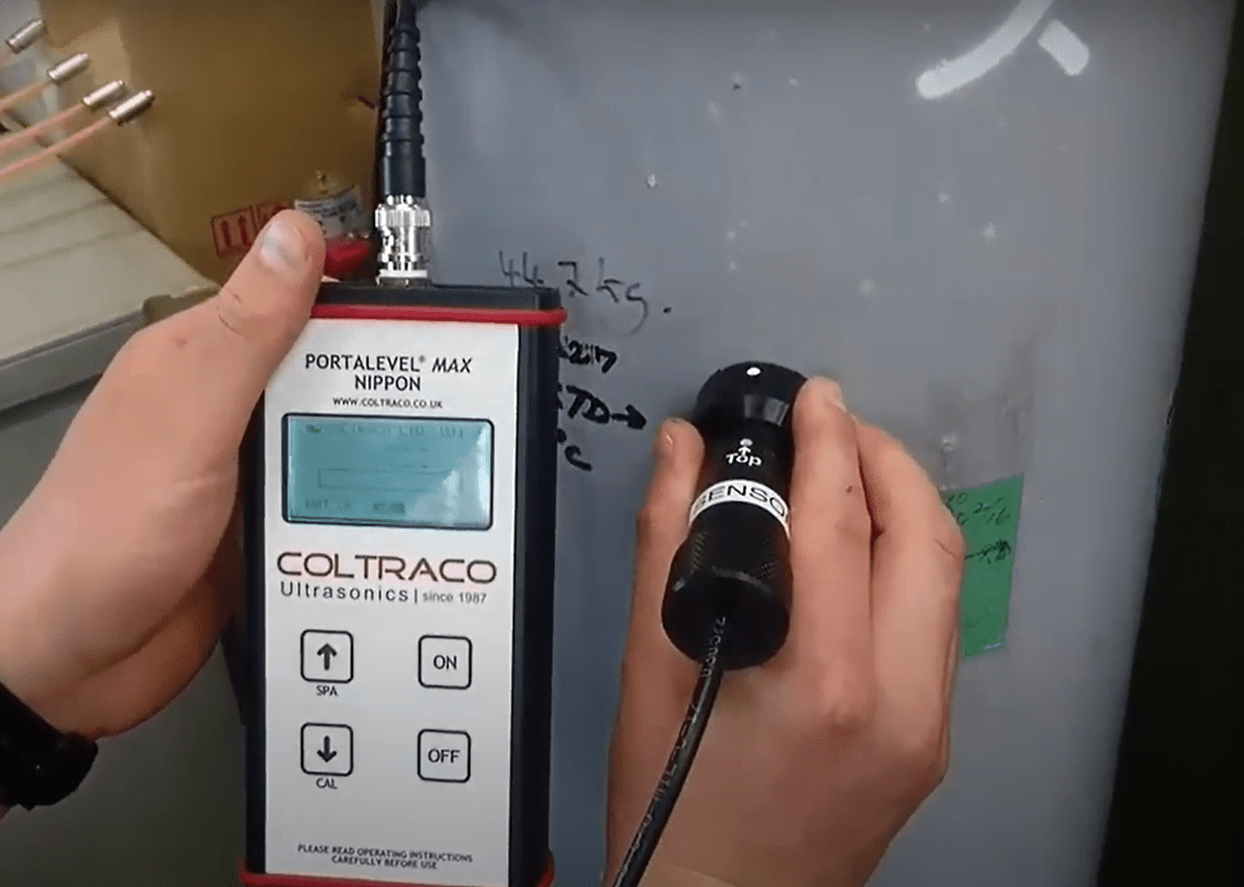

Portalevel® MAX Nippon

8th Generation
Portable Ultrasonic Liquid Level Indicator Designed for the Japanese Market
P/N:2290334-CONI
Ex-stock | Same-Day Dispatch*

Enquire Now
Category:

The Portalevel® MAX Nippon is a variety of the 8th Generation Portalevel MAX Technology and specifically dedicated for the specific challenges of the Japanese market.

Working closely with a variety of Japanese Fire Suppression Manufacturers, a variety of unique challenges were identified that required a tailored solution. The Portalevel® MAX platform was requested owing to the speed, ease and accuracy of its use but with a variety of performance enhancements, unique to the Japanese market.

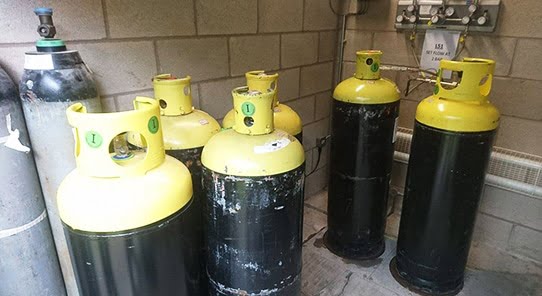

Thicker, more power absorbing Japanese cylinders demand a specially tailored calibration capability and increased power output. As a result of this, a specially adapted unit was created, allowing customers to take advantage of the 8th Generation ultrasonic level technology, optimized for specific tailored local requirements. This offers customers the usability of the Portalevel® technology even on the more challenging applications.

This model is only available in Japan via our local Distributors.

Dimensions


  • Height:98 mm (3.86 inches)
  • Width:158 mm (6.22 inches)
  • Depth:45.5 mm (1.80 inches)
  • Weight:420 grams (14.82 ounces)

Accuracy

+/-1.5mm (1/8 inch)

Verifiable Agents

CO2, H20, FM-200™, NOVEC™1230, old Halons such as 1301 and 1211, FE-13™, FE-25™, FE-36™, HFC-225 & 2271

Sensor2

TX/RX Dry Sensor
  • 14 mm diameter head
  • Contained within a magnetized sensor applicator;
  • Connected by BNC connectors to 1 m length co-ax cable.

Standard Extension Rod Sensor :
  • 1 meter in length
  • 28mm in diameter
  • Connected by bnC connectors to 1 m length co-ax cable.

Power Supply

4 x AA 1.5V Batteries (battery life 10 hours)

Display

LCD Numeric Digital Display with LED Bar Graph

Operating Temperature

-20°C to +70°C (68°F to 158°F)Relative Humidity-5 % - 95 %

Certificates

  • Classification Society Approved- RINA
  • CE
  • ISO 19011 Registered

Classifications

  • IP Rating 65
  • NATO Stock Number: 6680-99-275-5292

Warranty

Main Unit: 3 Years Warranty Sensor: 1 Year Warranty Lifetime Customer Support

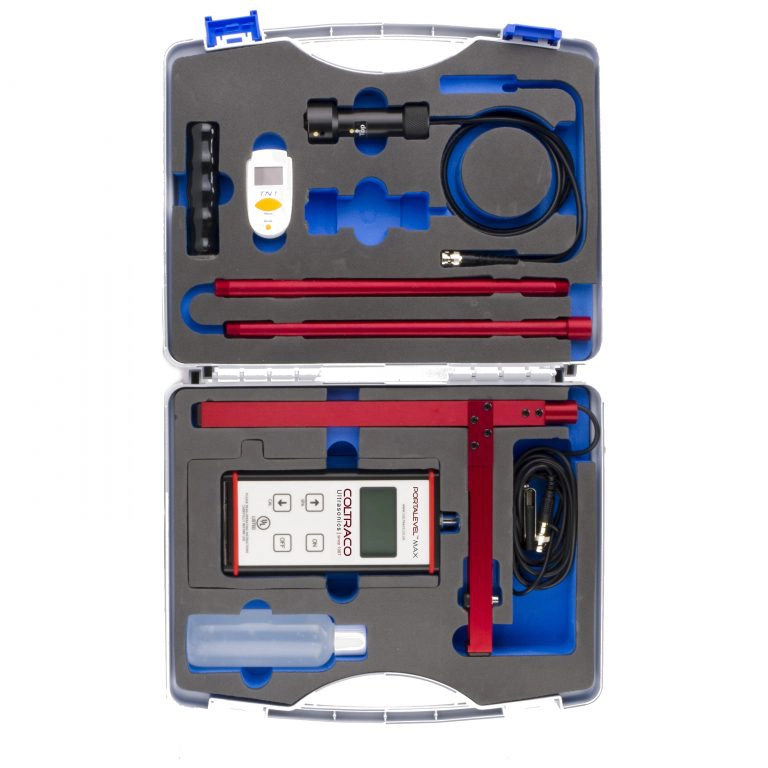

Package Contents

  • 1 Portalevel® Mini Nippon unit
  • 1 Wet Sensor
  • 1 28 mm Extension Rod
  • Ultrasonic Gel
  • 1 Hard Wearing Carrying Case
  • Calibration certificate
