Portalevel® LITE is Coltraco Ultrasonics’ latest innovation in ultrasonic liquid level measurement, offering high-accuracy performance at an exceptional value. Building on the success of the Portalevel® Original and Portalevel® Mini, it is designed for the non-invasive measurement of fire suppression system contents.
P/N: 2290334-LITE
NSN: 6680-99-275-5292
IMPA MSG P/N: 652776
CAGE Code: KD983 – COLTRACO LIMITED

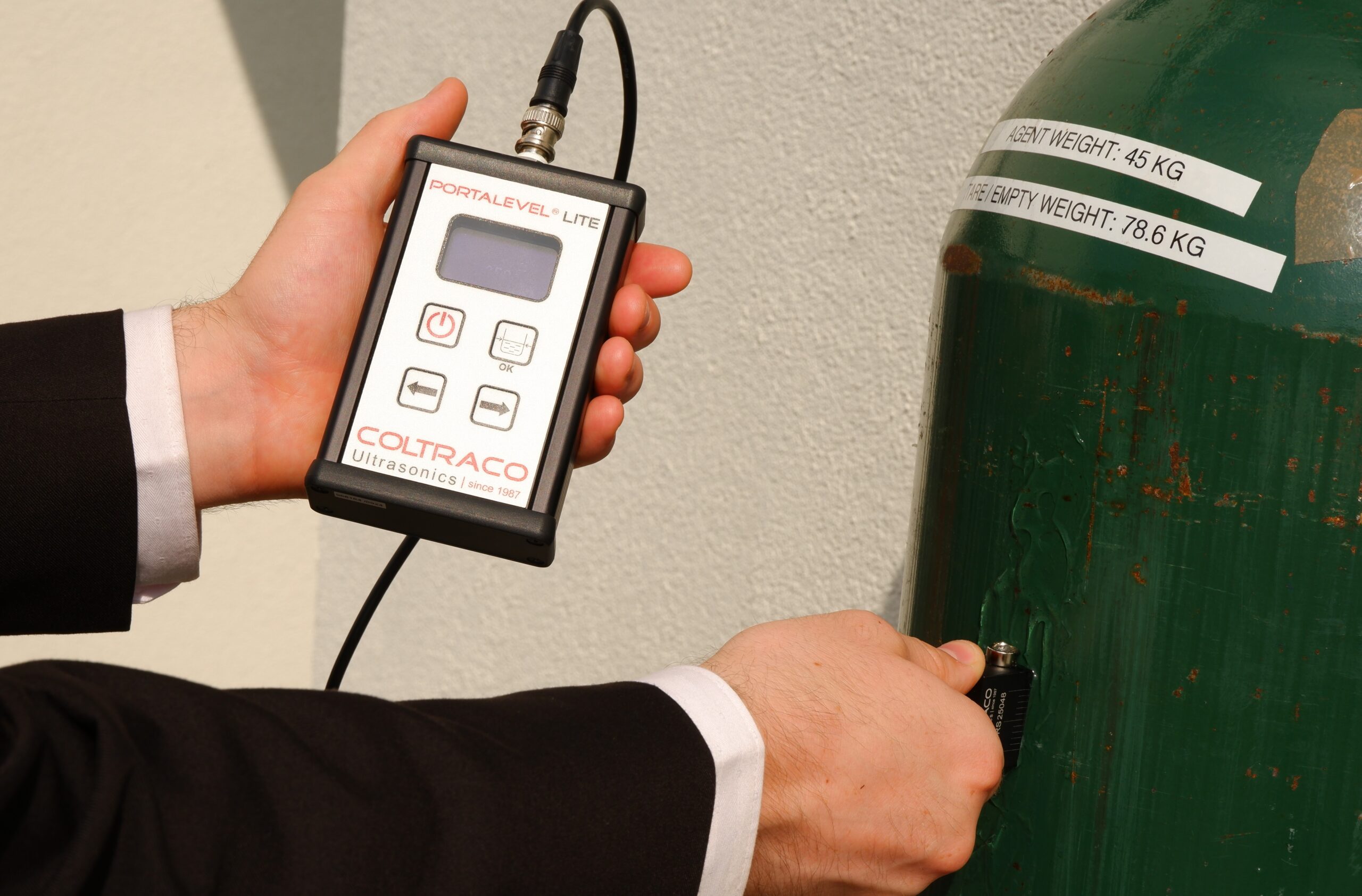

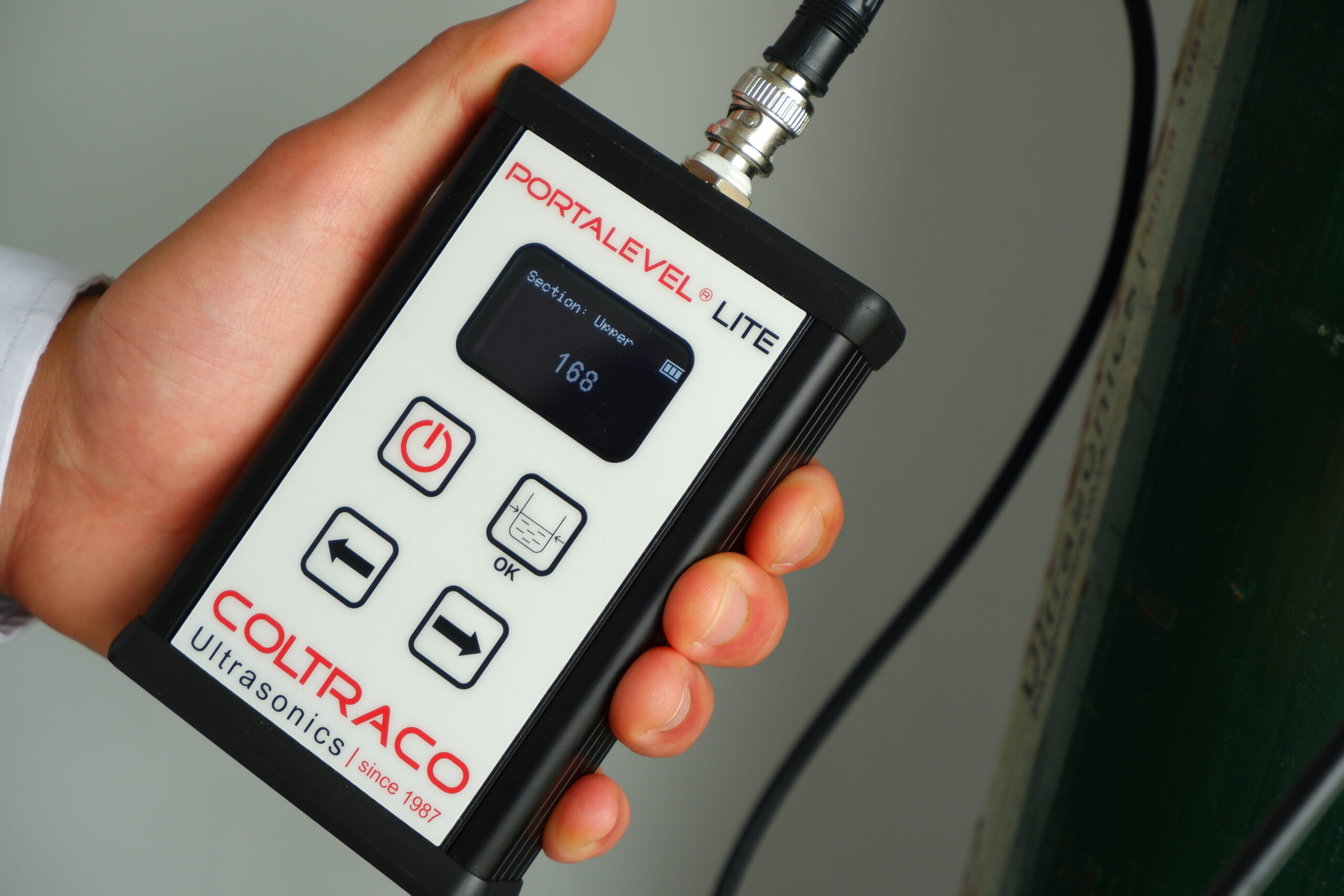

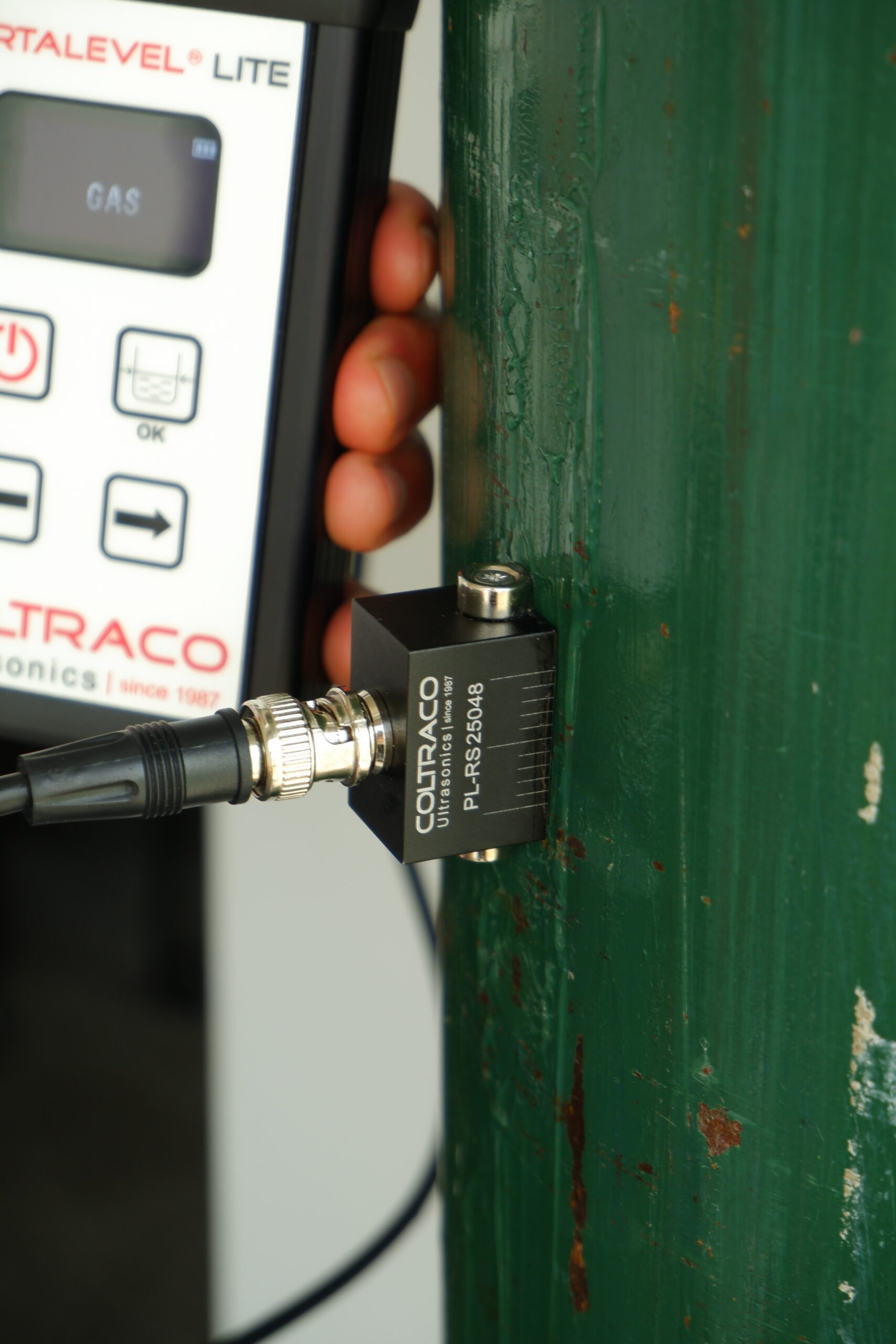

Portalevel® LITE quickly and accurately determines the liquid level in a wide range of liquefied fire suppression agents, including CO2, FM200™, and NOVEC™1230. The device features a high-contrast OLED display that clearly indicates the cylinder contents phase, showing either “GAS” or “LIQUID.”
With over 30 years of experience in developing ultrasonic liquid level indicators, Coltraco Ultrasonics is a leader in this field. Portalevel® LITE uses advanced signal processing techniques to deliver liquid level accuracy to within ±1mm of the true level. Our instruments are crafted to the highest standards in the UK using premium materials, offering superior value and reliability, backed by our unique position in research and development.
The combination of the Portalevel® ADVANCED and Portasteele® CALCULATOR uses our decades of experience in ultrasonic engineering and collaboration with fire suppression system manufacturers to allow a user to clearly determine the agent weight from the liquid level without having to physically weigh the cylinder. The benefits of this are:
Tracebility: The liquid level found is traceable to the agent weight which is the only documented evidence of fire suppression cylinder contents from the manufacturer
Temperature Correction: Any fluctuations in liquid level as a result of temperature changes is automatically accounted for in the calculations, giving you the true agent contents at all times regardless of temperature
All measurements are saved and recorded with time & date stamp, for effectively audit trail and to comply with relevant ISO and NFPA regulations where agent weight is required to be reported
With over 30 years of experience in developing ultrasonic liquid level indicators, Coltraco Ultrasonics is a leader in this field. Our instruments are crafted to the highest standards in the UK using premium materials, offering superior value and reliability, backed by our unique position in research and development.
Technical Specification | |
|---|---|
| Dimensions | 120x78x27 mm (L x W x D) |
| Unit Weight | 300g (with batteries) |
| Cylinder Compatibility | Works on most single-skinned cylinders, operational range may vary depending on the cylinder contents. Typical cylinder diameter: 110mm – 406mm |
| Agent Types | Carbon Dioxide (CO2), Halon fire agents (Halon 1211, Halon 1301, Halon 2402), FE-13™, FE-25™, Clean Agents (Novec™ 1230, FM200™) |
| Accuracy | Down to ± 1% of true liquid level |
| Display | 1.54” 128x64 OLED |
| Additional Features |
|
| Power Supply | 4x LR03 (AAA) cells for up to 24 hours of operation. |
| Operating Tempurature |
|
| Sensor | Piezoelectric crystal sensor made from stainless steel. Connects via a 1m BNC coaxial cable. |
| Certifications |
|
| Warranty | Main Unit: 3 years, Sensors: 1 year Lifetime customer support |
Portalevel® MAX PLUS is our latest high-spec UL listed addition to our line of handheld, battery powered liquid level indicators. With Portalevel® MAX PLUS, an operator can rapidly and reliably detect the liquid level within a fire cylinder with a clear GAS / LIQUID interface, with an accuracy of ±1.5mm in under 30 seconds.
P/N: 2290334-COMXPS
NSN: 6680-99-275-5292
IMPA MSG P/N: 652776
CAGE Code: KD983 – COLTRACO LIMITED
The Portasteele® CALCULATOR is the perfect partner to any of Coltraco Ultrasonics’ liquid level detectors. It allows you to convert your measured liquid level to an agent weight, precisely and accurately. These readings can then be saved and exported for future reference and traceability.
Used in partnership with the Portalevel® Ultrasonic Level Indicator range
P/N: CALC-007
CAGE Code: KD983 – COLTRACO LIMITED
